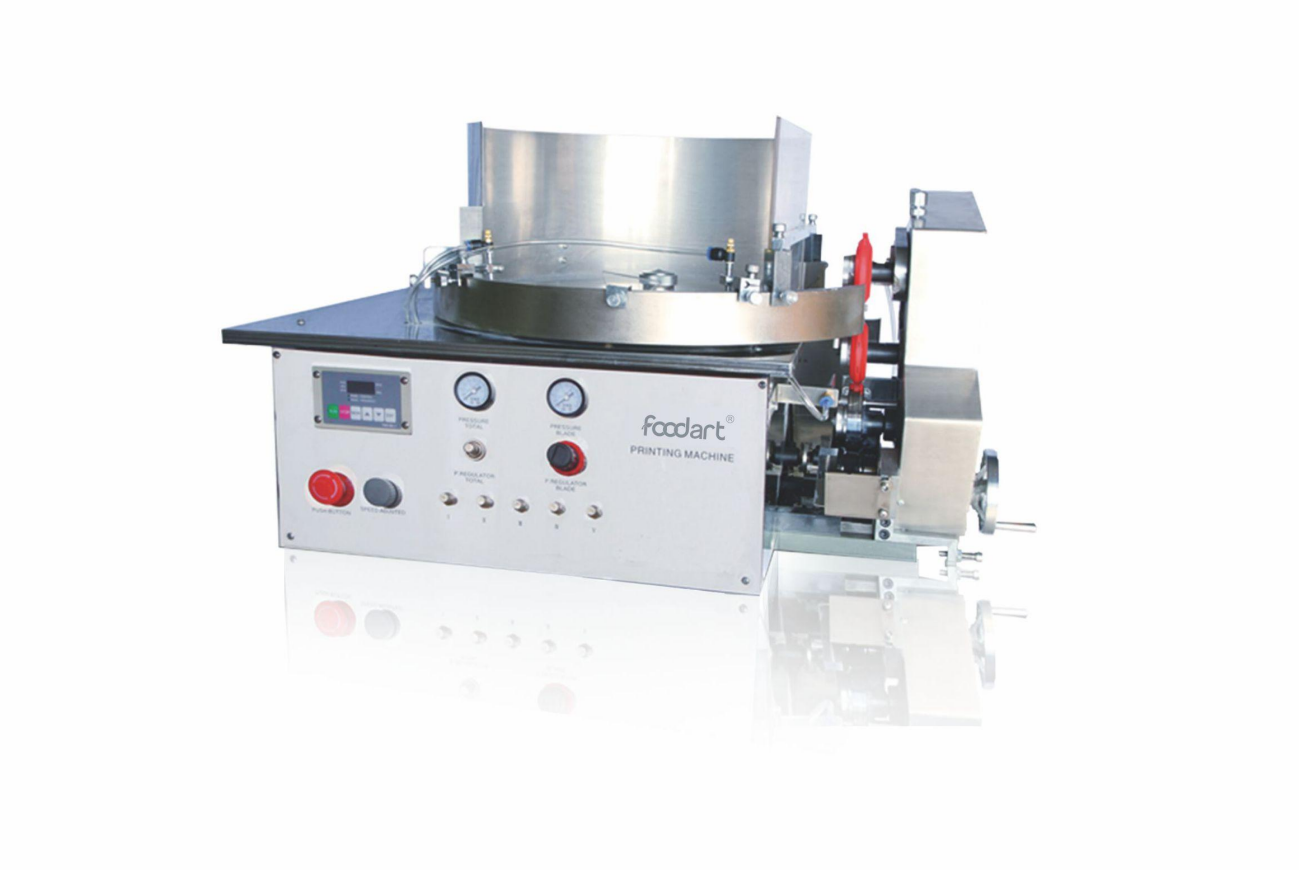

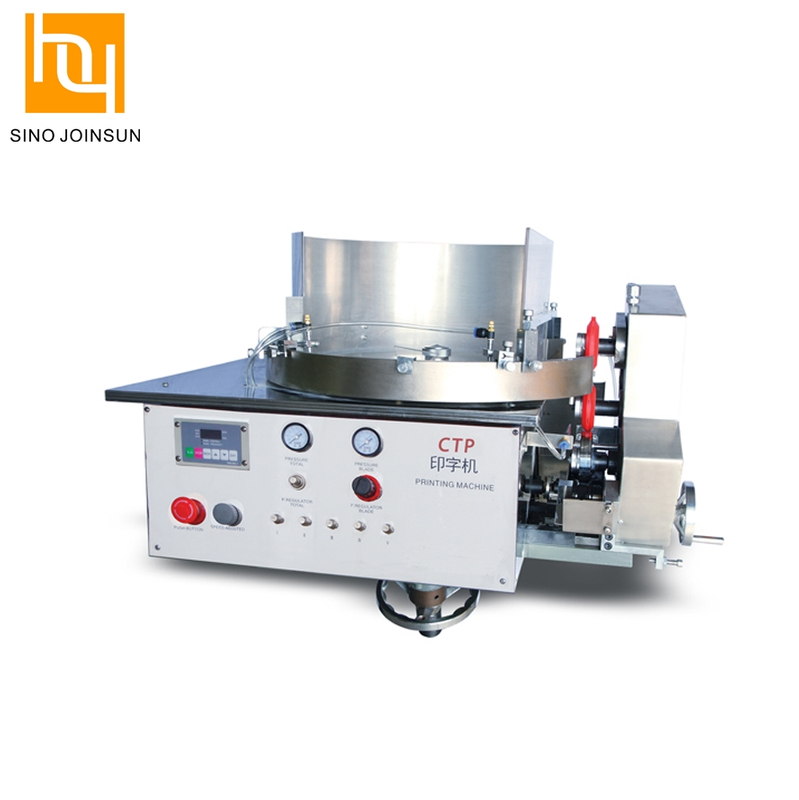

Candy Printing Machine HY-AP-Ⅲ for Printing Candies, Chocolate Beans, Tablet

Our candy printing machine and edible ink were made from non-toxic raw materials. We have FDA, CFDA certificates and food production, so our edible ink is safe to human body.

  • HY-AP-Ⅲ
  • Sino Joinsun
  • Product name: Candy printing machine HY-AP-Ⅲ
  • Ink Type: edible ink
  • Max printing size: 11*11mm
  • Air Pressure: ≤0.6MPa
  • Voltage: 220V
  • Application: Printing soft capsule, candy, chocolate bean...
  • Warranty: 1 YEAR
  • Power: 50HZ
  • 3mm: 80000pill/h
  • 12mm: 50000pill/h
Quantity:
分图1

 Product Description:



Candy printing ink is a safe and healthy edible ink developed by our company, which is suitable for gravure printing, plate printing and other printing machines. There are seven standard colors, and can provide color customized service. Edible candy printing ink makes candy fun, away from dull and mediocre choices.


分图2     主图4


Key point:



1>Gravure printing

2>Solid/soft/candy/chocolate both ok
3>Stainless steel material comform with GMP standard

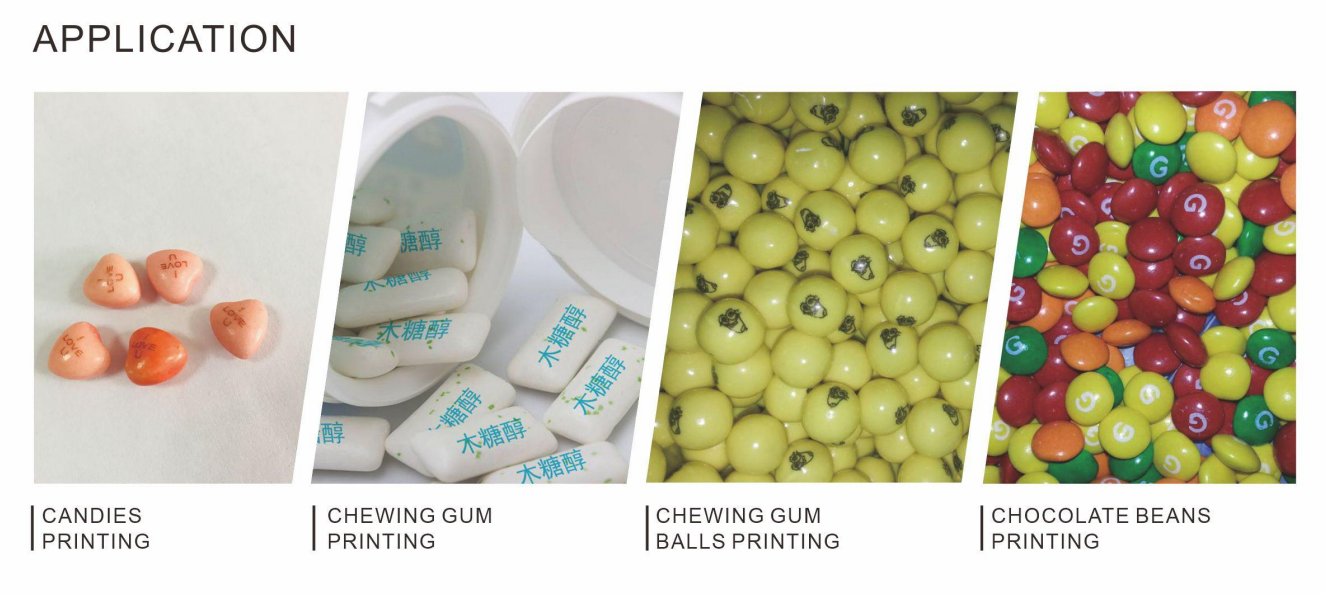

Applications:



The gravure printing machine for chocolate beans, candies, and chewing gum and so on.


分图5

  分图5 (2)   55da8b202ef4c

Applications:

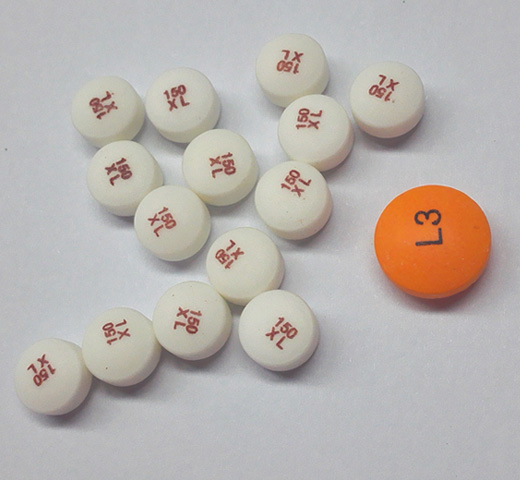

The Printer can also be used for tablet printing, soft capsule printing.


分图8 (2)    分图8

Technical Data:

Item Index
form Viscous liquid, no spoilage and mildew, no visible foreign impurities.
Color and lustre Having the color of the product
smell Has the inherent smell of this product, no odour
color Black, white, red, green, light blue, dark blue, yellow. 7 standard colors. Can provide color customized service.
Chrominance a(Lab) Chromatic aberration between chromaticity marks
ΔEab≤3
relative density ≥1.00
fineness(μm) ≤20
dynamic viscosity(mPa·s) 100~1000
Initial dryness(mm/30s) 25~50
Solid content(%) ≥40
arsenic(mg/kg) ≤2.0
Lead(Pb,mg/kg) ≤2.0
package 1Kg/bottle
storage Shaded, sealed, kept in a cool, dry place
A enterprise self-determined chroma sample standard

分图9    分图10

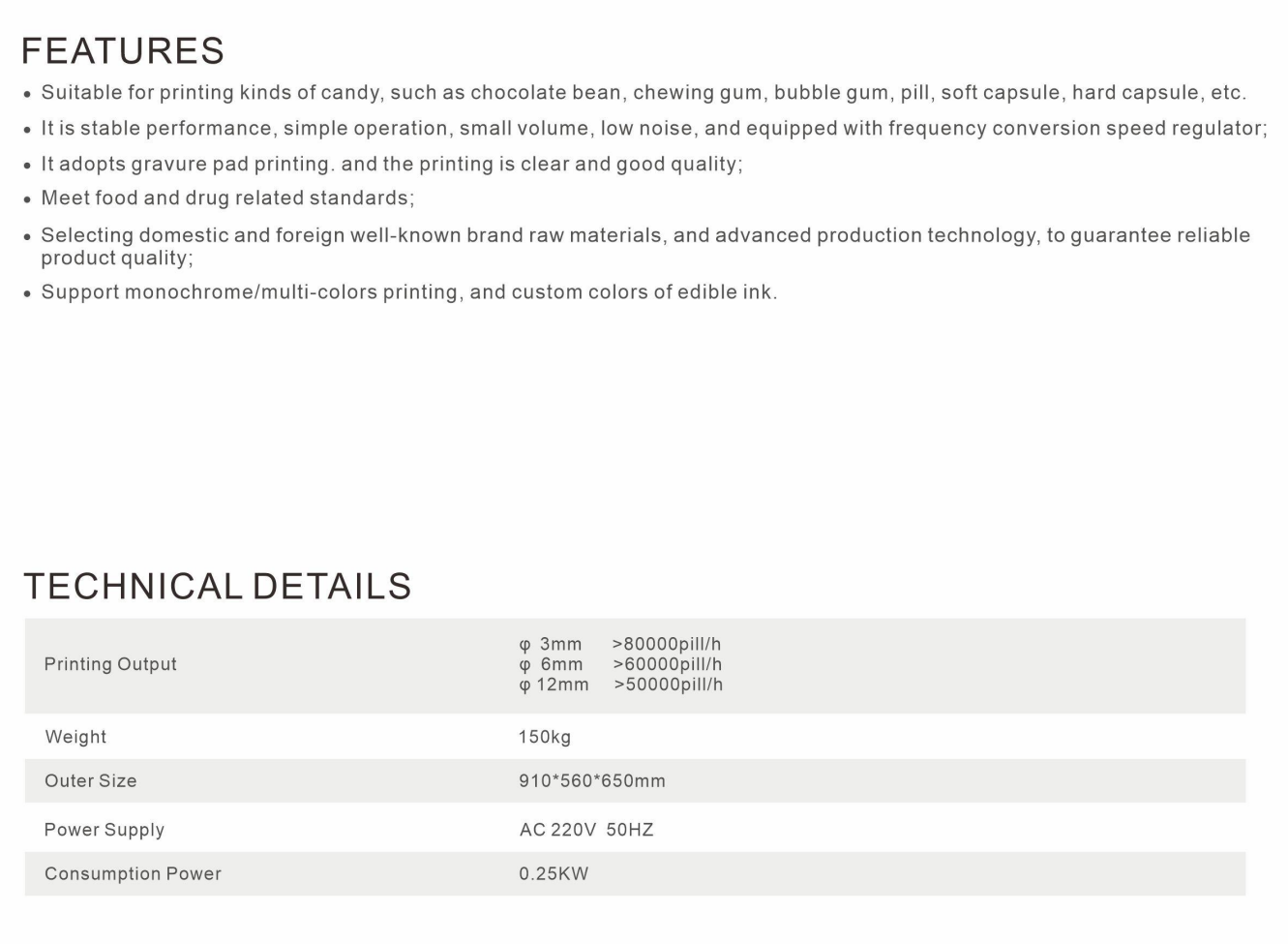

Main Features:

1. Stainless steel material, in line with the GMP standard.
2. Equipped with brake wheels, convenient moving.
3. Good printing effect, clear letter printing, no burrs.
4. Customized model is available,it depends on customer's specific product,such as empty hard capsule, soft   capsule, tablets, candy, etc.


Working Principle:

Put the capsule or tablets into the feeding plate,and let them fall naturally into the grooves of the revoling feeding plate.The surplus capsules or tablets are expelled under the function of the compressed ir,and make there is only one tblet or capsule enter into each of the groove on the chain,and ready to be printed.The speed of the printing transfer rubber roller snchronizes with the revolution of the feeding plate,when the printing material is ready to be printed,it will be clamped in the pair of rollers to finish the printing process,and then transfer to the delivery outlet.
Packing weight: 75kg


分图11


Packaging and Shipping :

packing

shipping

certificate

FAQ:



1. Q: What’s the warranty of this machine?

A: It is 1 year free warranty, for more question please contact us directly.

2. Q: Do you sell spare parts for those machines?

A: Sino Joinsun supply spare parts of all types to sell. Some products are available from stock. Maybe other parts will be tailor-made according to customer’s individual requirements.

3. Q: What services you are offer?

A: Provide technical guidance, and field service, also including personal training with expert instructions, 24 hours of online consulting and after-sales maintenance on a regular basis. Make sure to maximize the benefits.

4. Q: How many colors it can print one time?

A: We have different types, one for single color,another one for double color,

5. Q: How many logos it can print one time?

It can print various logo, less than 8-10 different logos one time.



Technical parameters Output Data
Weight 250kg Empty capsules 00#-5# 40,000 pcs/h
Equipment Size
(L*W*H)
1000*760*1580mm Filled capsules 00#-5# 40,000 pcs/h
Power 220V/50Hz  1A Softgel capsule 33000~35400 pcs/h
Motor Power 0.255kw Tablets 5mm>70000 pcs/h
Compress Air 40 Pa / Psiat 4SCFW 9mm>55000 pcs/h
270 Kpa at 0.0005m³/5 12mm>45000 pcs/h

HY-YSZ-B fully automatic letter printing machine , it’s one kind of gravure printing machine, which is suitable for printing letters ,brands and designs on hollow (solid) capsule ,soft capsule ,various kinds of tables (of irregular shapes) and candy .
