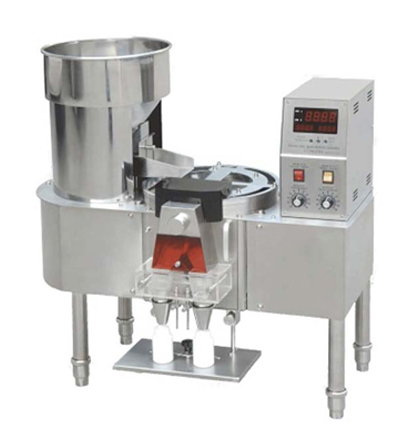

CDR-3 Tablet/Capsule Counting machine

  • CDR-3

  • Sino Joinsun

  • Model: CDR-3
  • MOQ: 1 SET
  • Shiping port: Shanghai
  • Payment: TT. Western union
  • Speed: 1000-1800 tables 600-1000 capsules/min
  • Package: Wooden case
  • Weight: 50KG
  • Shipping: By sea
  • 属性:
                                                                      CDR-3C Electronic Counting Machine
Electronic counting and bottling machine with dual-outlet feeding structure by vibration, micro computer control system, infrared dynamic counting technology can accurately feed the setting numbered drugs into bottles.
The machine is able to count and bottle capsules, tablets, pellets in the line of drugs, health care products or food, applying to pharmaceutical companies and health care food enterprises.

Main features:
1.Using infrared photocell device and Photosensitive receiving sensor, reaches the highest technical accuracy.
2. Co ntrol system CPU core board and technology modules are independent of each other, easy to install an d replace.
3. Dual outlet design,outlet diameter can be in any combination based on the size of bottle, Can slightly adjust the bottle height.
4. Stainless steel material for whole machine body can meet with GMP specification.
5. Easy to operate and no special training required.
6. Precision pellet count with special electrical eye protection device.
7. Rotary pellet counting design with fast and smooth operation.
8. The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually.
9. The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.


Detail Images:

CDR-3细节图

Advantages:
1. Longer usage-life
2. Full automatic operation, it’s help full for on line management.
3. Stable working performance.
4.High efficiency.
5. Good after-sale service .




Our service:
1.Warranty time: one year warranty for full machine.
2. Provide on line guidance for installation and maintenance.
3. With english operating manual.
4. If required the engineer service in site, we can arrange engineer to customer’s plant to prive service. (Usually this machine is very easy to operate for the customers according to our operation manual.

A small number of counting machines , suitable for Laboratory,  pharmaceutical factory

Main Technical Parameters
Machine Model CDR-3
Production Capacity 1000-1800 tabs/min(Determined by product specifications)
600-1000 capsules/min(Determined by product specifications)
Machine Dimensions 820×830×350mm
Motor Power AC220v   50hz
Net weight 50  kg
