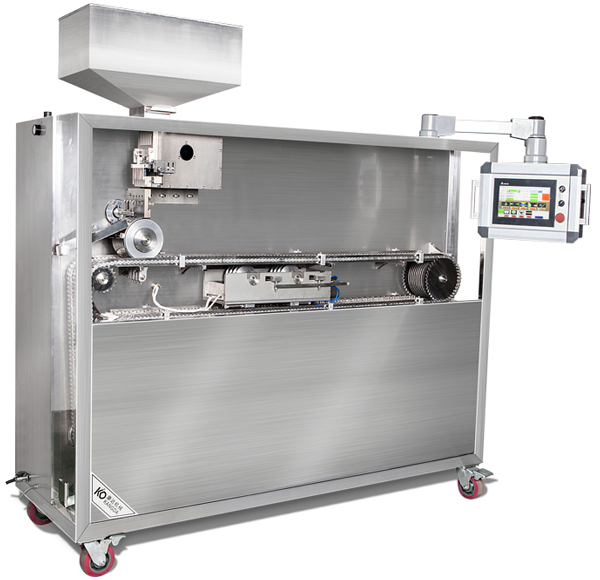

Automatic Hard (Liquid) Capsule Band Sealing Machine HY-NSF-600

The developing of capsule sizing treatment sealing machine has completely solved the technical difficulty for sealing of liquid capsule , and it has met the pharmaceutical enterprises’ high requirements for durability, protection, visibility of capsule dosage, and it help for pharmaceutical quality assurance and anti-counterfeiting.

  • HY-NSF-600
  • Sino Joinsun
Quantity:
Automatic Hard (Liquid) Capsule Band Sealing Machine NSF-600

With development and maturity of liquid capsule filling technology, the liquid capsule production technologies have gradually replaced high-cost of soft capsule production technologies. The developing of capsule sizing treatment sealing machine has completely solved the technical difficulty for sealing of liquid capsule , and  it has met the pharmaceutical enterprises’ high requirements for durability, protection, visibility of capsule dosage, and it help for pharmaceutical quality assurance and anti-counterfeiting.

                                               hard capsule band sealing

Working principle :

After the hard capsule are baited from hopper, capsule caps and capsule bodies are neatly aligned on conveying mechanism along the same direction by positioning mechanism, after passing through sizing treatment mechanism, connection place of capsule cap and capsule body is automatically coated with safety spill-proof glue(adopting secondary sizing treatment technology to ensure sizing treatment effect) by sizing treatment wheels, then they are naturally solidified in process of conveying mechanism’s reciprocating conveying and after product is rapidly dried, effect for sealing of hard capsule cap and capsule body will be achieved.

Images:

QQ图片20160829110538  QQ图片20160829110601


Advantages :
1
.Help to improve stability of capsules and the safety of medicine. Assures that the medicines be free of tampering
2.Easy to visually inspect, and help to make the medicine in good airtightness and reduce oxygen diffusion
3.Colored seals create brand differentiation
4.Help to prevents the leakage of liquid filled capsules
5.The machine is easy to operation and with excellent selling effect


Main working process of Capsule band sealing machine:

未标题-1
Capsule Direction and transmission

未标题-3
Sizingn treatment


Drying and transmission
F eatures :
1 It with touch screen control, multi-system integrated and high degree of automation.
2. Material-lacking overload is under automatic protection which can ensure material’s smooth supply.
3.capsule’s baiting, orientation and in-place are accurate and speed can be controlled;
4. Sizing treatment is even and secondary sizing treatment technology locks sealing effect.
5. Conventional feeding and vacuum feeding are optional in accordance with applicable scene.
6. It adopts highly-sensitive temperature sensor, by which, temperature of glue box can be real-time controlled.
7. Capsule’s feeding, orientation and in-place are accurate and speed can be controlled.
8. Glue box and machine body adopt separating and closing design, by which, it can be easily disassembled and cleaned.
9. They are made of stainless steel which conforms to GMP standard.
10. It adopts precision pneumatic control system which ensures glue box’s working smoothly up and down ,  forward and backward.
11. It adopts reciprocating conveying mechanism, it can be naturally dried which does not affect drug properties inside the capsule.

Our service :
1. Warranty time: one year warranty for full machine.
2. Provide on line guidance for installation and maintenance.
3. With English operating manual.
4. with engineer service overseas, we can arrange engineer to customer’s plant to provide service in site.


Packaging and shipping :
packaging              packaging 0
Model NSF-600
Range of application 0#-3#
Production efficiency ≤40,000 capsules/hour (Water-soluble sealing materials)
≤50,000 capsules/hour (Non-water-soluble sealing materials)
Rated power 2KW
Power supply 220V/50HZ
Temperature of water-soluble glue solution 30-40
Environmental requirements Around 25 and Humidity of 45%-75%
Weight 1000KG
External dimensions 2000*700*1650mm
